Brand Name : Graphy

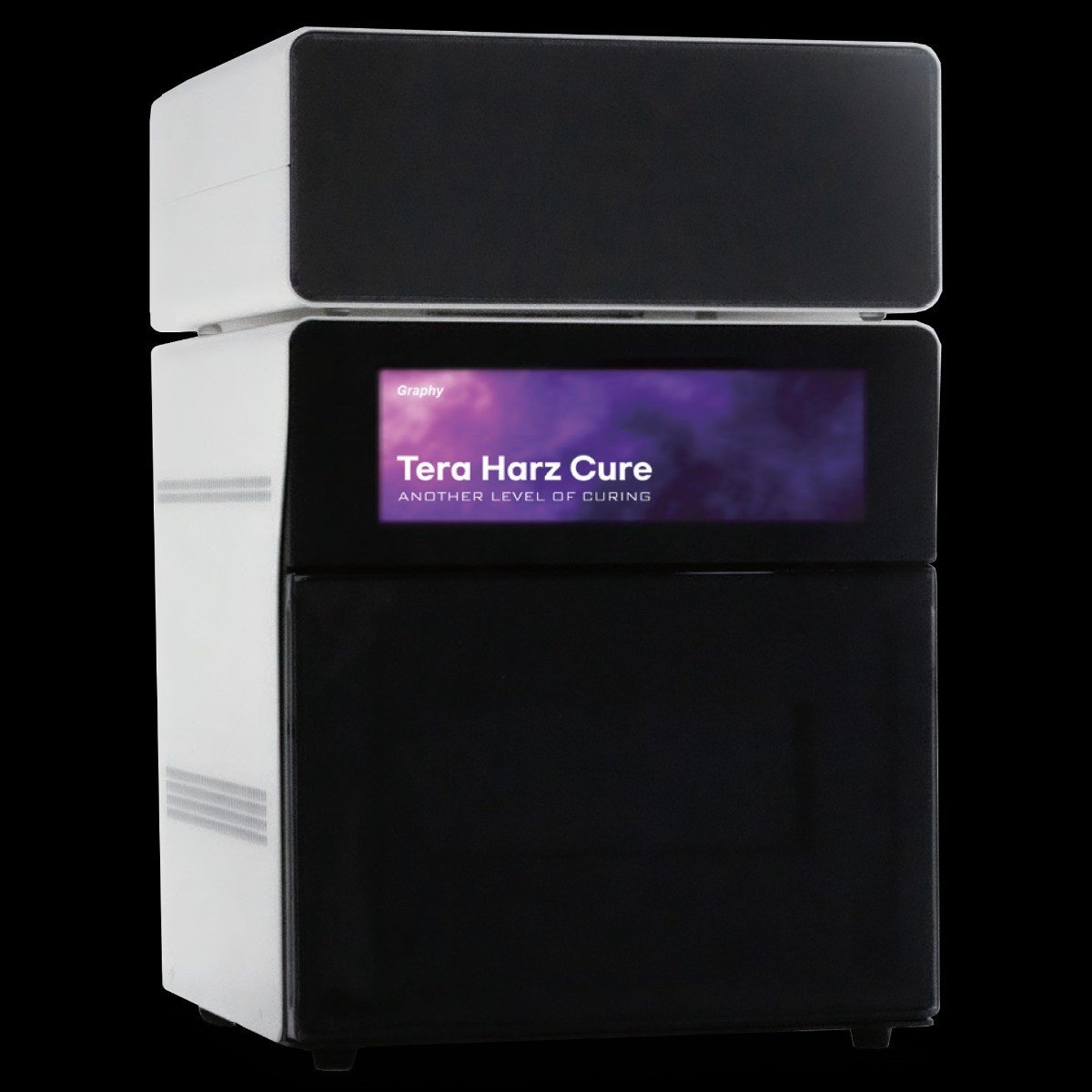

Product Name : Graphy Tera Harz Cure UV Curing

Model : THC 2 (Tera Harz Cure)

Light Source : UV LED

LED Wavelength : 405 nm

LED Power Output : 200W

UV Energy Density : 280.000 mJ/cm²

UV Irradiance : 1.000 mW/cm²

Curing Time : 5–55 sec / 1–60 min

Input Voltage : 100–240 VAC, 50/60 Hz

Output Voltage : 24V, 12.5A

Display : 7.9” TFT Touch LCD

LED Operation Temp : 5–35°C

Curing Chamber : ⌀180 × 65 mm (Turntable)

Outer Dimensions : 275 × 310 × 310 mm

Weight : 8.5 kg

More Information : Download Brochure

Item Code : THC

Packaging : Tera Harz Cure UV Curing

Manufacturer Name & Address : Graphy, Geumcheon-gu Seoul,
08501 South Korea

Marketed By : Libral Traders Pvt. Ltd.

MDR No. : Graphy-KOR/I/MD/016323

Country of Origin : Korea

Graphy THC 2 (Tera Harz Cure) is a high-performance UV post-curing device engineered to achieve perfect photopolymerization for dental 3D printed materials.

Designed with high UV energy and irradiance, this advanced curing system maximizes flexural strength, tensile strength, and shade stability while significantly reducing curing time.

• Adjustable UV power levels (Lv.1–Lv.5)
• Customizable curing time (seconds to minutes)
• Optimized top & side LED arrangement for uniform curing
• Ideal for Graphy resins and other dental photopolymer materials

Perfect for orthodontic labs, aligner production workflows, and high-precision dental model finishing.

Nitrogen Curing Advantage :

The integrated nitrogen generator enables:

• Maximum mechanical properties
• Improved color stability
• Reduced water absorption
• Enhanced surface hardness
• Superior long-term durability

This makes it ideal for curing aligner materials, retainers, splints, and dental models.

Usage & Maintenance Guidelines :

• Operate within 5–35°C environment
• Use nitrogen mode for optimal material strength
• Clean curing chamber regularly
• Follow resin manufacturer’s curing recommendations
• For professional dental laboratory use only

• Nitrogen Curing System (Included Generator) – prevents oxygen inhibition
• Prevents shrinkage & discoloration
• Achieves full monomer conversion
• Maximizes tensile & flexural strength
• High-power 200W UV LED output
• Rapid curing: 1–10 minutes
• 5 Memory Modes for repeat workflows
• Diagnostic function & auto power-off safety
• Uniform light distribution
• Large 7.9" TFT Touch LCD Display
